Integrations

Overview

The Red Hat OpenShift Integration allows Cywift to securely connect with OpenShift API servers to collect infrastructure, node, and workload-related data.

Before starting the integration, ensure the following

• Cluster administrator access to OpenShift
• API Server URL
• Service Account with appropriate Cluster Role permissions
• Network connectivity between Cywift and the API server

Step1: Create Service Account

Cywift uses a service account token for secure API communication.

1. Create a service account in your OpenShift project.
2. Assign the 'cluster-reader' ClusterRole to the service account.
3. Retrieve the API token for the service account.

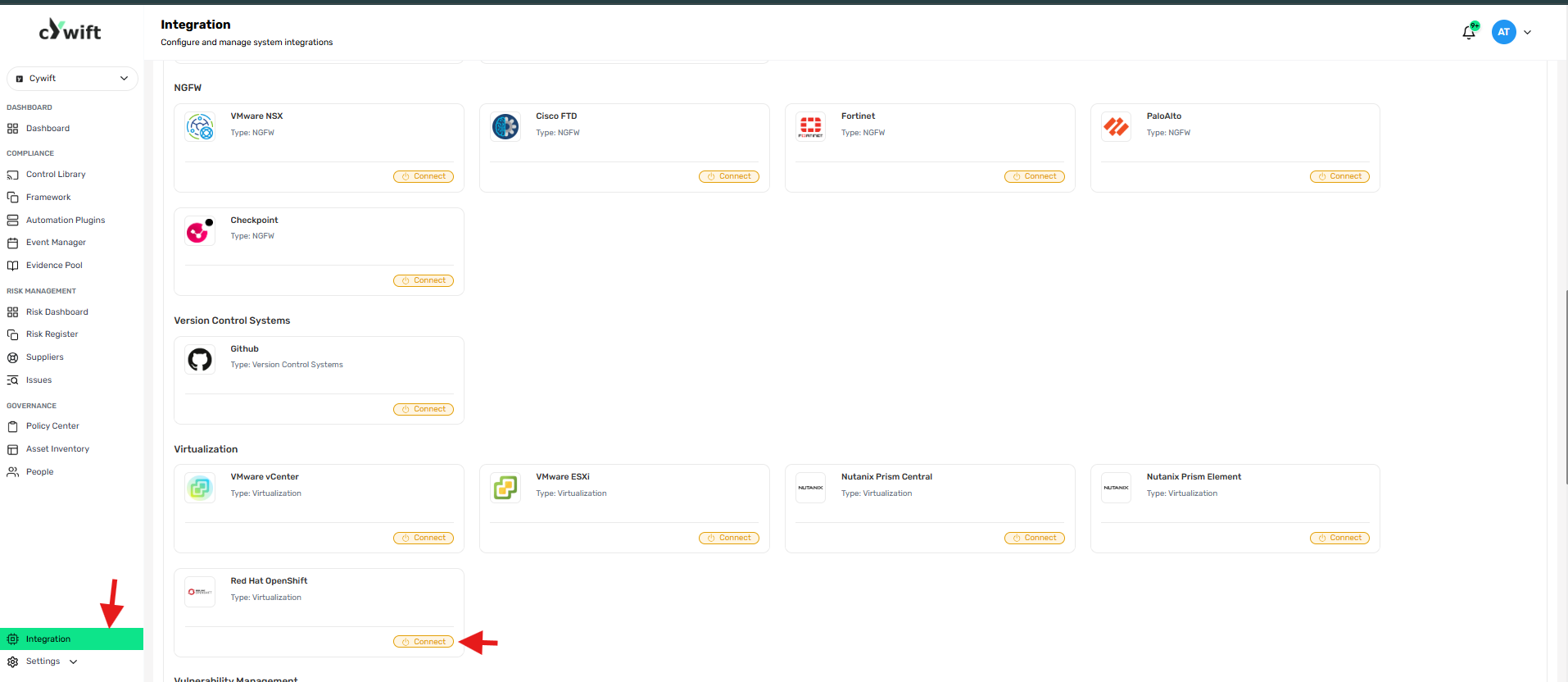

‍Step2: Navigate to Integrations in Cywift

• Log in to the Cywift Platform
• Go to Integration from the left menu
• Under Virtualization
• Select Red Hat OpenShift
• Click Connect

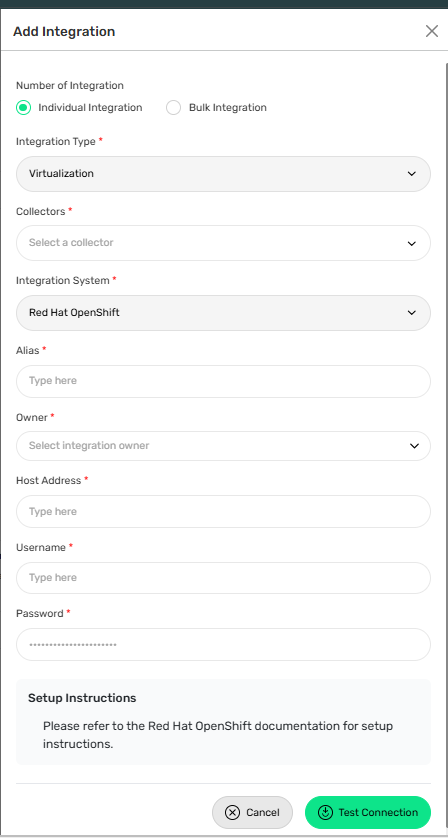

Step3: Add Individual Integration

RequiredFields:

• Number of Integration: Select Individual Integration
• Integration Type: Virtualization
• Collectors: Select a configured collector
• Integration System: Red Hat OpenShift
• Alias: Enter a friendly name
• Owner: Select integration owner
• Host Address: Enter API Server     URL (e.g., https://api.cluster.domain:6443)
• Username: Enter the Service Account Name
• Password: Enter the Service Account Token

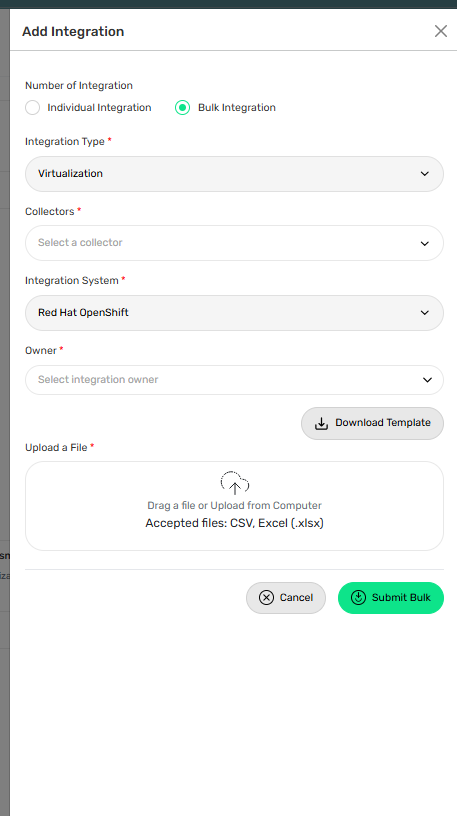

Step 4: Add Bulk Integration

Use this option to integrate multiple  Red Hat OpenShift instance.

Steps:

• Select Bulk Integration
• Download Template
• Fill required account details
• Upload file
• Click Test Connection

‍Troubleshooting Tips

• Verify API credentials
• Confirm API service is enabled for the target environment
• Check network connectivity and port accessibility
• Ensure firewall rules allow access from the Cywift collector to the target host
