Integrations

FortiGate Firewall

Overview

The FortiGate Firewall integration allows Cywift to securely connect with your Fortinet environment to collect security, network, and system-related data. This integration uses a REST API token generated from the FortiGate GUI and enables continuous visibility into firewall controls and configurations.

Before starting the integration, ensure the following:

• FortiOS version 7.4.5 or later (or 7.6.0 or later) is installed
• Administrator access to the FortiGate firewall
• REST API access is enabled
• Network connectivity exists between Cywift and the FortiGate device
• Collector configured in Cywift

Step 1: Create an Admin Profile in FortiGate

1. Log in to the FortiGate GUI.
2. Navigate to:
3. System → Admin Profile → Create New
4. Create a new profile and assign the following permissions:
5. • VPN — Read/Write
   • User and Device — Read/Write
   • Network — Read/Write
   • System — Read/Write
6. Save the profile.

‍

Step 2: Create a REST API Admin and Generate Token

1. Navigate to:
2. System → Administrators → Create New
3. Select REST API Admin.
4. Assign the Admin Profile created in Step 1.
5. Generate the REST API Token.
6. Copy and securely save the token.

‍

Important Notes:

• The API token is displayed only once during creation
• Treat the token as confidential information
• Use dedicated API accounts for integrations whenever possible
• Regenerating a token invalidates the previous token

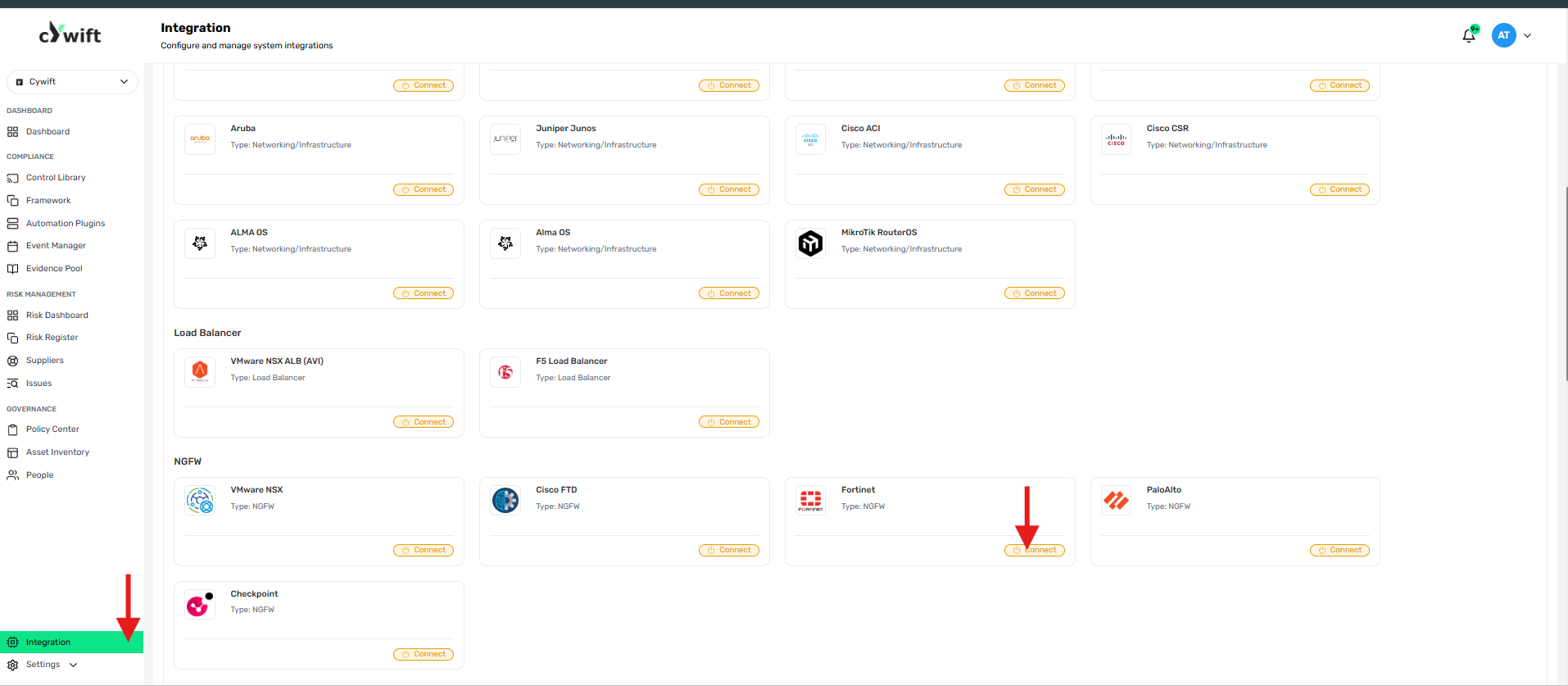

Step 3: Navigate to Integrations in Cywift

• Log in to the Cywift Platform
• Navigate to Integration
• Select NGFW
• Choose Fortinet
• Click Add Integration

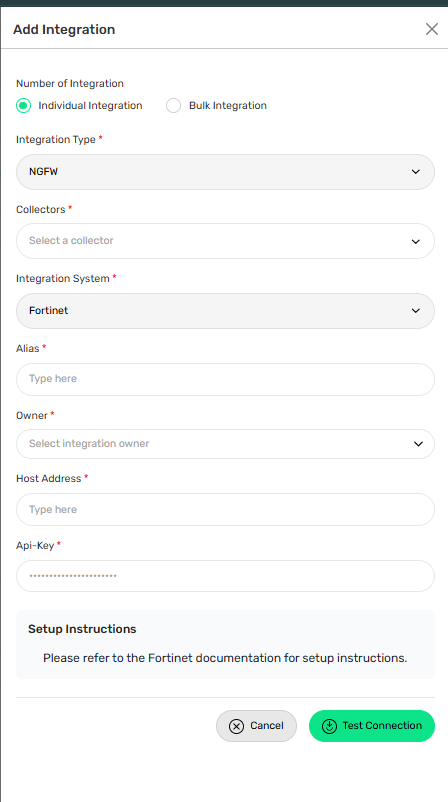

Step 4: Add Individual Integration

Use this option when integrating a single FortiGate firewall.

Required Fields:

• Select Individual Integration
• Select Fortinet from NGFW
• Select a configured Collector
• Enter an Integration Alias
• Select an Integration Owner
• Enter the FortiGate Host Address (IP Address or Hostname)
• Enter the REST API Token

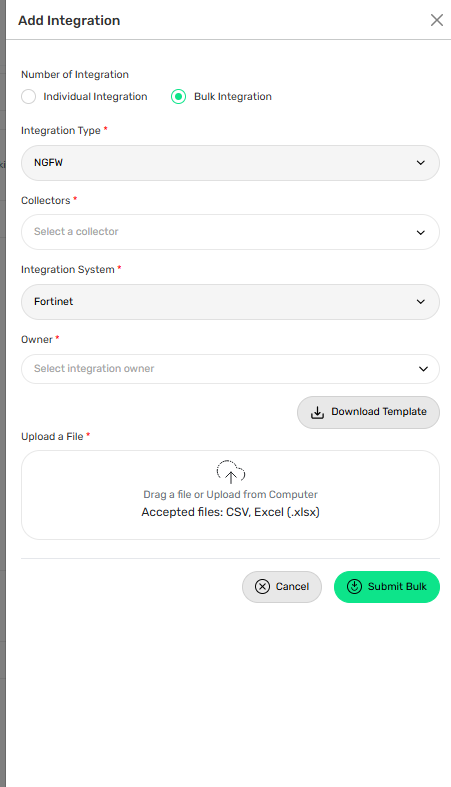

Step 5: Add Bulk Integration

Use this option to integrate multiple FortiGate firewalls simultaneously.

Steps:

• Select Bulk Integration
• Download the template
• Enter the required firewall details
• Upload the completed file
• Click Test Connection
• Save the integration

Troubleshooting Tips

• Verify the Host Address is correct and reachable
• Confirm the REST API Token is valid
• Check administrator permissions assigned to the API user
• Ensure network connectivity between the collector and firewall
